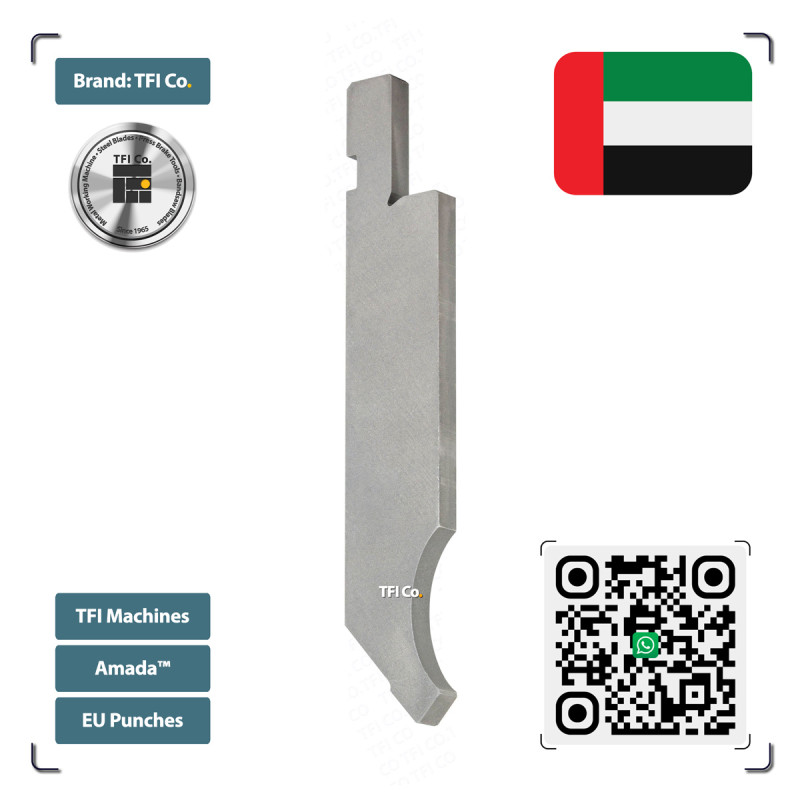

Straight Punch Silver Class 90° — H150mm B27mm

BPS_150_27_90_MhJ

New product

Straight Punch upper tool for bending machine and hydraulic press brake. Made By TFI co Available in Saudi Arabia UAE Qatar Oman And Kuwait

More details

Pre Order

AED 125APPRX.price

Data sheet

Length3200 mm
Width150 mm
Thickness27 mm

More info

Technical Specifications

Punch Height (H)150.00 mm
Body Thickness (B)27.00 mm
Bending Angle90.00°
Material GradeC45
Tip Hardness45–50 HRC
Body Hardness40–45 HRC
Tolerance ClassDIN 7168 Medium
Max Bending Force100 kN/m
Standard Set Length835 mm
Segment Composition5×150mm + 2×42.5mm
Product GradeSilver Class
EU Drawing ReferenceEU3211

Clamp System Compatibility

  • AFH / Euro Style — AMADA AFH, Bystronic, Durma, Ermaksan, and most Euro-clamp CNC press brakes
  • AMADA Direct-Mount — AMADA native clamp systems

Parameters Confirmed Upon Order

The following parameters are customer-defined. TFI Co. will confirm these via email upon receipt of order:

  • Tip Radius (R): Standard options: 0.6 mm / 0.8 mm / 1 mm. Custom radius available on request.
  • Segment Composition: Standard configuration: 5×150mm + 2×42.5mm. Custom segment arrangement available at no extra cost.

This is the narrative description text. No spec or segment block here.

Set Composition

Total: 3200 mm  •  9 pieces

1 × 100mm Ear pieces (100mm) 3 × 800mm Main segments (2400mm) 2 × 100mm Main segments (200mm) 2 × 200mm Main segments (400mm) 1 × 100mm Ear pieces (100mm)
Ear pieces1 × 100 mm (100mm sub-total)
Main segments3 × 800 mm (2400mm sub-total)
Main segments2 × 100 mm (200mm sub-total)
Main segments2 × 200 mm (400mm sub-total)
Ear pieces1 × 100 mm (100mm sub-total)
Total Set Length3200 mm

Custom segment arrangements available at no extra cost. Extended or reduced set lengths available on request.

42CrMo Chromium-Molybdenum Steel — BCC Crystal Unit Cell42CrMo — Chromium-Molybdenum SteelBCC CRYSTAL UNIT CELL · MICROSTRUCTURE REFERENCE · DIN 42CrMo4α-IRON BCC UNIT CELLBody-Centered Cubic · a ≈ 2.87 Å · Cr and Mo substitute Fe at lattice nodesMoFeFeFeFeCFeCrFeFeSubstitutional CrSubstitutional MoInterstitial Ca ≈ 2.87 Å (lattice parameter)ALLOYING ELEMENTSFeIron (Fe) — MatrixBalance ≈97.3% · BCC host lattice · α-phaseCrChromium (Cr)0.90–1.20% · Hardenability & wear resistanceMoMolybdenum (Mo)0.15–0.25% · Toughness & high-temp strengthCCarbon (C)0.38–0.45% · Interstitial · Hardness controlMnManganese (Mn)0.60–0.90% · Deoxidizer & machinabilitySiSilicon (Si)0.17–0.37% · Deoxidizer & tensile strengthKEY PROPERTIES (heat-treated)Tensile Strength (Rm)≥1000 MPaYield Strength (Rp0.2)≥850 MPaHardness (quenched)54–58 HRCDensity7.85 g/cm³Crystal structureα-Fe BCC · a≈2.87ÅStandardDIN 42CrMo4 / GB 42CrMoApplicationPress brake tooling & diesCOMPOSITION (wt%) — minor elements at ×12 visual scaleFe 97.3%Cr 0.90–1.20%Mn 0.60–0.90%C 0.42%Si 0.27%Mo 0.2%α-Fe BCC lattice · Cr/Mo as representative substitutional atoms · C as representative interstitial · Ref: DIN EN ISO 683-2, ASM Handbook Vol.1
Material Reference — 42CrMo Alloy Steel (DIN 42CrMo4 / GB 42CrMo / ASTM 4140 equivalent) Alpha-iron (α-Fe) body-centered cubic (BCC) crystal unit cell. Representative substitutional Chromium (Cr, blue) and Molybdenum (Mo, green) atoms shown at lattice nodes; interstitial Carbon (C, charcoal) shown at octahedral site. Composition bar (bottom) shows all alloying elements — minor elements at ×12 visual scale for readability. All TFICO press brake tooling is manufactured from 42CrMo alloy steel, quench-and-temper heat-treated to achieve 54–58 HRC surface hardness and minimum tensile strength of 1,000 MPa. Lattice parameter a ≈ 2.87 Å. Standard: DIN EN ISO 683-2 · ASM Handbook Vol. 1 · GB/T 11251.
