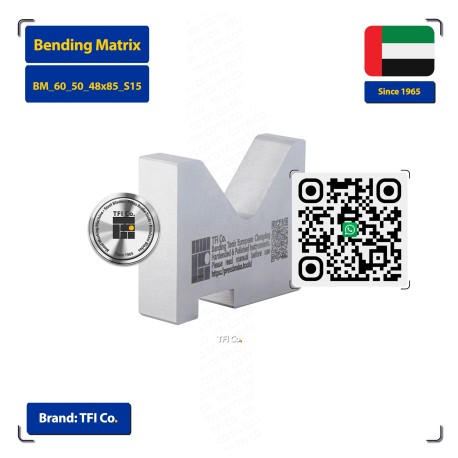

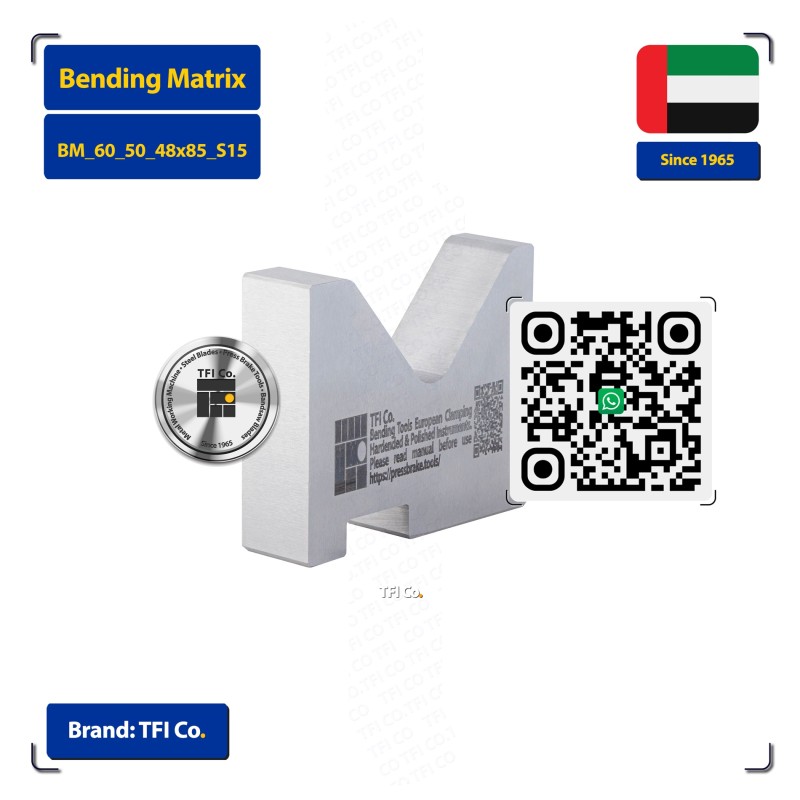

Bending Matrix BM_60_50 – Single 85° Groove 48mm Wide Body | Silver Class

BM_60_50_48x85_S15

New product

BM_60_50 — wide-body single-groove 85° bending matrix, 60mm body, 50mm height, 48mm groove. Handles ~6mm mild steel — superior deflection control at the upper end of the structural sheet metal range. Silver Class. UAE & GCC.

More details

AED 19,200 tax incl.

Data sheet

Width60 mm
Thickness50 mm

More info

TFI Co. supplies the BM_60_50_48x85_S15 Silver Class straight bending punch upper tool for press brake machines, serving the metalworking and sheet metal fabrication industry across the UAE, Saudi Arabia, Oman, and Qatar. The BM_60_50_48x85_S15 is a straight upper punch engineered for standard press brake forming operations, precision-manufactured and available for immediate dispatch from TFI Co. logistics centres.

This tool carries a body thickness of 60 mm, with a standard 85° bending angle suited to general sheet metal work and production-line setups.

All body thickness dimensions conform to DIN 7168 Fine tolerance standards, ensuring consistent clamping fit and tool interchange across compatible press brake systems.

Technical Specifications

V-Opening Width48.00 mm
Die Height (H)50.00 mm
Body Thickness (B)60.00 mm
Bending Angle85.00°
Material Grade42crmo4
Heat TreatmentFULL
Tolerance ClassDIN 7168 Fine
Standard Set Length3200 mm
Segment Composition1 × 3200mm
Product GradeSilver Class
EU Drawing ReferenceBM_60_50_48x85_S15

Clamp System Compatibility

  • AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
  • AMADA™ Direct-Mount — AMADA™ native clamp systems

Delivery Coverage

TFI Co. ships this product across the GCC region. Delivery is confirmed upon order to the following countries and territories:

  • UAE — delivered across all 7 emirates: Ajman, Abu Dhabi, Dubai, Fujairah, Ras Al Khaimah, Sharjah, and Umm Al Quwain
  • Saudi Arabia — delivered across all 13 regions: Riyadh, Makkah, Al Madinah, Al Qasim, Eastern Province, Asir, Tabuk, Hail, Northern Borders, Jazan, Najran, Al Bahah, and Al Jawf
  • Qatar — delivered across all 7 municipalities: Ad Dawhah (Doha), Al Khor, Ash Shamal, Ar Rayyan, Umm Salal, Al Wakrah, and Az Za'ayin
  • Oman — delivered across all 11 governorates: Al Batinah North, Al Batinah South, Al Buraymi, Ad Dakhiliyah, Muscat, Musandam, Al Sharqiyah North, Al Sharqiyah South, Al Wusta, Az Zahirah, and Dhofar
  • Kuwait — delivered across all 6 governorates: Al Ahmadi, Al Farwaniyah, Hawalli, Al Jahra, Al Asimah (Kuwait City), and Mubarak Al-Kabeer
  • Bahrain — delivered across all 4 governorates: Al Asimah (Manama), Al Janubiyah, Al Muharraq, and Ash Shamaliyah

TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.

TFI Co. provides Silver Class straight bending punch upper tools for press brake machines, serving the metal working and sheet metal fabrication industries. These tools are manufactured from high-quality alloy steel, precision-hardened and ground, and well-tested for multi-U-channel bending, box forming, and profile production on press brake machines. Available across the United Arab Emirates (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar.

The dimensions of this tool are a body thickness of 60 mm, with a bending angle of 85°.

Material & Steel Grade

Special grade steels — including BÖHLER tool steel™, Type 4 Molybdenum Steel, T10, T8, 42CrMo, and Cr12MoV — are the industry-standard materials for press brake punch and die tooling. The punch and die assembly absorbs the majority of the forming force produced by the press brake, making high-strength hardened steel essential for sustained production performance and dimensional consistency.

For press brake tooling, Chromium-Molybdenum Steel (Chromoly) is widely regarded as the ideal base alloy — combining exceptional tensile strength, corrosion resistance, and a long service life capable of handling the full force range of industrial press brake applications. Tungsten carbide tooling is also an excellent choice where surface hardness requirements are extreme.

This tool is manufactured from 42crmo4. — This alloy is selected for its toughness, fatigue resistance, and dimensional stability under cyclic bending loads.

Factories & Delivery

TFI Co. factories are positioned across key manufacturing regions to ensure the shortest possible lead times for customers and traders throughout the Middle East and beyond. Our management team, using the latest logistics technology, allocates each order to the optimal TFI Co. factory to ensure a seamless experience across logistics, fulfilment, and payment.

Dispatch scheduling is determined based on:

  • Time and date of order placement
  • Order quantity and total volume
  • Delivery destination and transport routing to the customer site

Segment Composition

TFI Co. press brake punch segment sets are available in standard compositions. All sets include one left ear piece and one right ear piece for full profile coverage and improved maneuverability. Standard set lengths and individual segment configurations follow TFI Co. segment standards.

Dimensional Tolerances

All body thickness dimensions for this tool conform to DIN 7168 Fine tolerance standards (DIN — Deutsches Institut für Normung, the German Institute for Standardization). This tolerance framework guarantees consistent clamping fit and reliable tool interchange across compatible press brake clamping systems and adapters.

Maximum Bending Force & Safety

All TFI Co. press brake tools carry a maximum rated bending force, which defines the safe operating limit for both staff protection and long-term tool performance. TFI Co. strongly advises all operators to remain within the stated capacity of any tool at all times.

For Further Information

To confirm the specific working height for this tool model and verify compatibility with your press brake setup, please contact the TFI Co. technical team.

For a complete breakdown of the segment set composition for this model — including individual piece lengths, quantities, and ear piece specifications — our specialists at TFI Co. are ready to provide the full configuration details.

The exact rated maximum bending force and safe tonnage capacity applicable to this specific tool model can be confirmed by contacting TFI Co. prior to finalising your order.

A single-groove wide-body matrix — 60 mm body, 50 mm height, 15 mm offset slot. The 48 mm groove at 85° accommodates approximately 6 mm mild steel, placing this die at the upper end of the standard sheet metal range. The extra 60 mm body width increases overall rigidity under load and distributes bending forces over a wider footprint — the preferred choice for heavier-gauge structural bending where deflection control and long tool life under sustained high tonnage are the primary operating requirements.

TFI Co. provides precision press brake bending matrices for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for production-intensive bending environments. All V-opening dimensions conform to DIN 7168 tolerance standards.

Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres.

All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.

42CrMo Chromium-Molybdenum Steel — BCC Crystal Unit Cell42CrMo — Chromium-Molybdenum SteelBCC CRYSTAL UNIT CELL · MICROSTRUCTURE REFERENCE · DIN 42CrMo4α-IRON BCC UNIT CELLBody-Centered Cubic · a ≈ 2.87 Å · Cr and Mo substitute Fe at lattice nodesMoFeFeFeFeCFeCrFeFeSubstitutional CrSubstitutional MoInterstitial Ca ≈ 2.87 Å (lattice parameter)ALLOYING ELEMENTSFeIron (Fe) — MatrixBalance ≈97.3% · BCC host lattice · α-phaseCrChromium (Cr)0.90–1.20% · Hardenability & wear resistanceMoMolybdenum (Mo)0.15–0.25% · Toughness & high-temp strengthCCarbon (C)0.38–0.45% · Interstitial · Hardness controlMnManganese (Mn)0.60–0.90% · Deoxidizer & machinabilitySiSilicon (Si)0.17–0.37% · Deoxidizer & tensile strengthKEY PROPERTIES (heat-treated)Tensile Strength (Rm)≥1000 MPaYield Strength (Rp0.2)≥850 MPaHardness (quenched)54–58 HRCDensity7.85 g/cm³Crystal structureα-Fe BCC · a≈2.87ÅStandardDIN 42CrMo4 / GB 42CrMoApplicationPress brake tooling & diesCOMPOSITION (wt%) — minor elements at ×12 visual scaleFe 97.3%Cr 0.90–1.20%Mn 0.60–0.90%C 0.42%Si 0.27%Mo 0.2%α-Fe BCC lattice · Cr/Mo as representative substitutional atoms · C as representative interstitial · Ref: DIN EN ISO 683-2, ASM Handbook Vol.1
Material Reference — 42CrMo Alloy Steel (DIN 42CrMo4 / GB 42CrMo / ASTM 4140 equivalent) Alpha-iron (α-Fe) body-centered cubic (BCC) crystal unit cell. Representative substitutional Chromium (Cr, blue) and Molybdenum (Mo, green) atoms shown at lattice nodes; interstitial Carbon (C, charcoal) shown at octahedral site. Composition bar (bottom) shows all alloying elements — minor elements at ×12 visual scale for readability. All TFICO press brake tooling is manufactured from 42CrMo alloy steel, quench-and-temper heat-treated to achieve 54–58 HRC surface hardness and minimum tensile strength of 1,000 MPa. Lattice parameter a ≈ 2.87 Å. Standard: DIN EN ISO 683-2 · ASM Handbook Vol. 1 · GB/T 11251.

Set Composition

Total: 3200 mm  •  1 pieces

1 ×
1 × 3200mm Main segments (3200mm)
Main segments1 × 3200 mm (3200mm sub-total)
Total Set Length3200 mm

Custom segment arrangements available at no extra cost. Extended or reduced set lengths available on request.
