Bending Matrix BM_50_46 – Two 86° Grooves 6mm & 32mm (Variant A) | Silver Class

BM_50_46_6x86_32x86_S15

New product

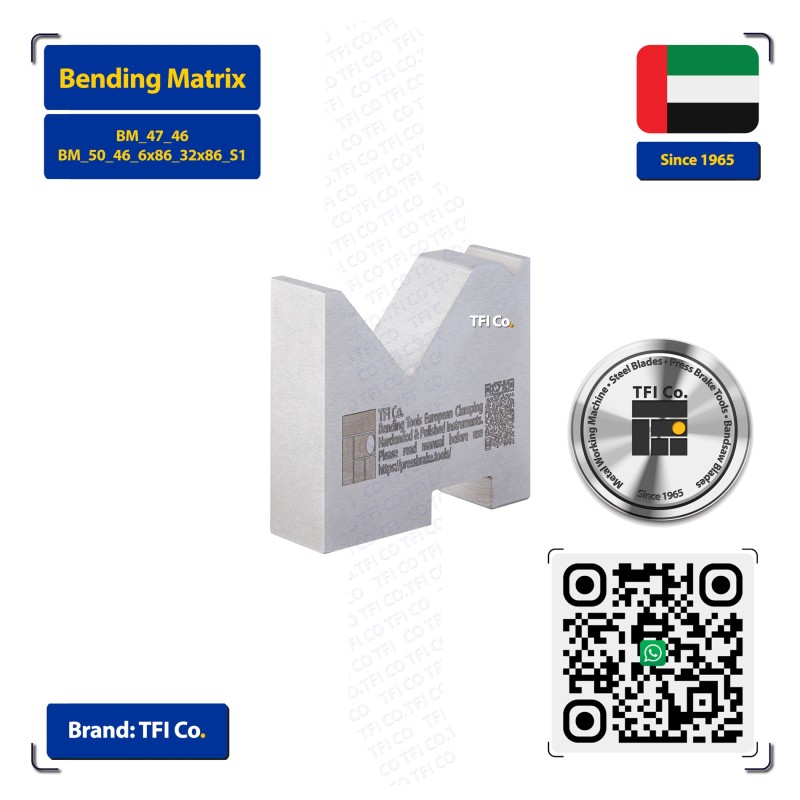

BM_50_46 (Variant A) — two-groove 86° bending matrix, 50mm body, 46mm height. Grooves at 6mm (~0.75mm sheet) and 32mm (~4mm sheet) — no angle recalibration between gauges. Silver Class. Available across the UAE and GCC.

More details

AED 0 tax incl.

Data sheet

Width50 mm
Thickness46 mm

More info

Technical Specifications

V-Opening Width32.00 mm
Die Height (H)46.00 mm
Body Thickness (B)50.00 mm
Bending Angle86.00°
Material Grade42CrMo4
Tolerance ClassDIN 7168 Fine
Segment CompositionSingle block die — 15mm offset mounting slot
Product GradeSilver Class

Clamp System Compatibility

  • AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
  • AMADA™ Direct-Mount — AMADA™ native clamp systems

TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.

All prices shown on this page are indicative estimates only and are subject to market fluctuation. For precise and up-to-date pricing, please contact us directly — scan the QR code printed on the product images, use the live chat button on this page, or find the contact number for your region at the bottom of this page.

A two-groove standard bending matrix — 50 mm body, 46 mm height, 15 mm offset slot. Carries a 6 mm groove at 86° for thin-sheet precision bending (approximately 0.75 mm material) alongside a 32 mm groove at 86° for medium-gauge structural work (approximately 4 mm material). Both grooves at 86° means the operator switches between thin-gauge and mid-gauge bending within the same program without re-angling the die or adjusting backstop references — only the groove face changes. The offset slot is machined to standard press brake die holder dimensions.

TFI Co. provides precision press brake bending matrices for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for production-intensive bending environments. All V-opening dimensions conform to DIN 7168 tolerance standards.

Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres.

All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.

42CrMo Chromium-Molybdenum Steel — BCC Crystal Unit Cell42CrMo — Chromium-Molybdenum SteelBCC CRYSTAL UNIT CELL · MICROSTRUCTURE REFERENCE · DIN 42CrMo4α-IRON BCC UNIT CELLBody-Centered Cubic · a ≈ 2.87 Å · Cr and Mo substitute Fe at lattice nodesMoFeFeFeFeCFeCrFeFeSubstitutional CrSubstitutional MoInterstitial Ca ≈ 2.87 Å (lattice parameter)ALLOYING ELEMENTSFeIron (Fe) — MatrixBalance ≈97.3% · BCC host lattice · α-phaseCrChromium (Cr)0.90–1.20% · Hardenability & wear resistanceMoMolybdenum (Mo)0.15–0.25% · Toughness & high-temp strengthCCarbon (C)0.38–0.45% · Interstitial · Hardness controlMnManganese (Mn)0.60–0.90% · Deoxidizer & machinabilitySiSilicon (Si)0.17–0.37% · Deoxidizer & tensile strengthKEY PROPERTIES (heat-treated)Tensile Strength (Rm)≥1000 MPaYield Strength (Rp0.2)≥850 MPaHardness (quenched)54–58 HRCDensity7.85 g/cm³Crystal structureα-Fe BCC · a≈2.87ÅStandardDIN 42CrMo4 / GB 42CrMoApplicationPress brake tooling & diesCOMPOSITION (wt%) — minor elements at ×12 visual scaleFe 97.3%Cr 0.90–1.20%Mn 0.60–0.90%C 0.42%Si 0.27%Mo 0.2%α-Fe BCC lattice · Cr/Mo as representative substitutional atoms · C as representative interstitial · Ref: DIN EN ISO 683-2, ASM Handbook Vol.1
Material Reference — 42CrMo Alloy Steel (DIN 42CrMo4 / GB 42CrMo / ASTM 4140 equivalent) Alpha-iron (α-Fe) body-centered cubic (BCC) crystal unit cell. Representative substitutional Chromium (Cr, blue) and Molybdenum (Mo, green) atoms shown at lattice nodes; interstitial Carbon (C, charcoal) shown at octahedral site. Composition bar (bottom) shows all alloying elements — minor elements at ×12 visual scale for readability. All TFICO press brake tooling is manufactured from 42CrMo alloy steel, quench-and-temper heat-treated to achieve 54–58 HRC surface hardness and minimum tensile strength of 1,000 MPa. Lattice parameter a ≈ 2.87 Å. Standard: DIN EN ISO 683-2 · ASM Handbook Vol. 1 · GB/T 11251.

Set Composition

Total: 3200 mm  •  1 pieces

1 ×
1 × 3200mm Main segments (3200mm)
Main segments1 × 3200 mm (3200mm sub-total)
Total Set Length3200 mm

Custom segment arrangements available at no extra cost. Extended or reduced set lengths available on request.
