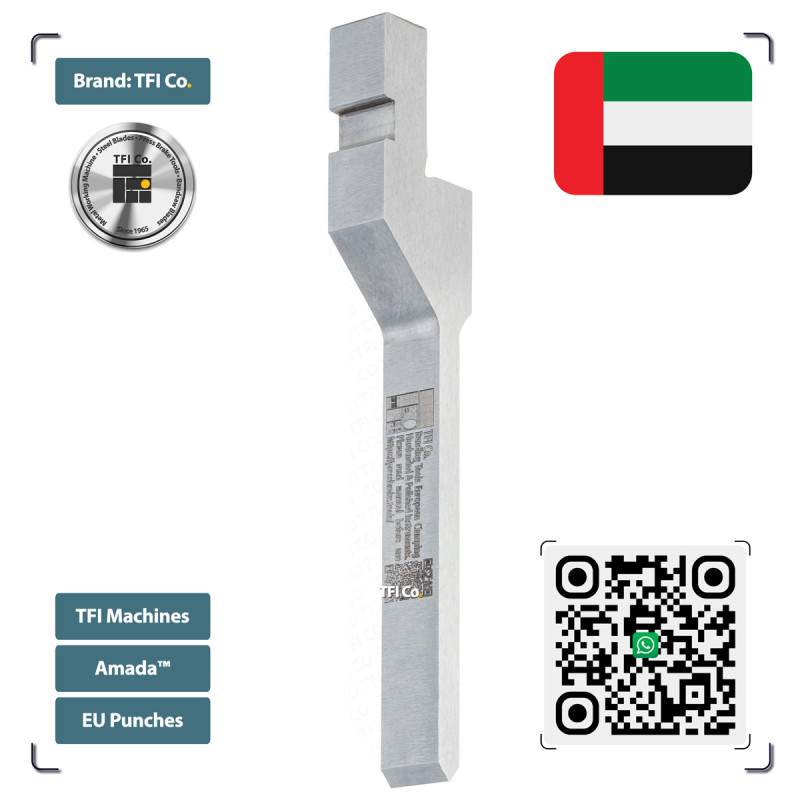

Straight Punch Gold Class 85

BPS_150_27_85_vOd

New product

Straight Punch upper tool for bending machine and hydraulic press brake. Made By TFI co Available in Saudi Arabia UAE Qatar Oman And Kuwait.
The size for this tool is 150 x 26 and angle is 85 degrees.

More details

Pre Order

AED 17,800 tax incl.

Data sheet

Length835 mm
Width150 mm
Thickness27 mm

More info

TFI Co. Provides “Straight Bending Punch Upper Tool” For Press brake Machine for Metal Working Industries made of High Quality Alloy Steel With Well Structured Clusters Chemical Composition, Hard and Grinded Well tested for Multi U channel Formation Purposes available in United Arab Emirates (Abu Dhabi Dubai Sharjah Ajman Ras Al Khaimah ) , Kingdom of Saudi Arabia, Oman and Qatar
The size for this tool is 150 x 26 and angle is 85 degrees.

Special grade steel, such as BOHLER Steel or Type 4 Molybdenum Steel, is typically used to make punch and die.

The majority of the force produced by the press brake is handled by the die and the punch.

Thus, to maintain this tonnage, high-strength hardened steel is essential. T10 grade, T8 grade, 42CrMo grade, and Cr12MoV are further popular steel grades used to make the proper press brake tooling.

For press brake tooling, Chromoly, or Chromium-Molybdenum Steel is thought to be the ideal material.

Chromoly steel is incredibly strong and resistant to corrosion.

As such, it offers a long service life and the capacity to handle all press brake requirements. Another excellent choice for press brake tooling is tungsten carbide, which offers excellent quality at a fair price.

Our factories are located around the world for the best reach to the customers and traders around the region. To know more about factories of TFI Co., please click here .

Depending on:

  • the time of the order
  • the amount of the order
  • Delivery point for the blades

Our management, using the latest finest technology, makes the decision to allocate the order to the right TFI Co. factory and ensures a seamless experience with TFI Co. logistics and payments.

The choice of segments for TFI Co. press brakes are standard. Please refer to this link for knowing more about segment standards.

All of our segments come with 1 piece of left ear and 1 piece of right ear for press brake punches to serve your application for bending profiles better and give you more space for better maneuvers. In the sizes of body thickness, there are tolerances and the standard of the tolerance is based on DIN (Deutsches Institut für Normung) 7168.

All tools come with maximum tonnage capacity, which are the safety factors for the usage of the tools. TFI Co. strongly advises all customers to stay within the range of the capacity of the tools for their own staff safety and to make sure to only apply the mentioned force, not more.

Set Composition

Total: 3200 mm  •  9 pieces

1 × 100mm Ear pieces (100mm) 3 × 800mm Main segments (2400mm) 2 × 100mm Main segments (200mm) 2 × 200mm Main segments (400mm) 1 × 100mm Ear pieces (100mm)
Ear pieces1 × 100 mm (100mm sub-total)
Main segments3 × 800 mm (2400mm sub-total)
Main segments2 × 100 mm (200mm sub-total)
Main segments2 × 200 mm (400mm sub-total)
Ear pieces1 × 100 mm (100mm sub-total)
Total Set Length3200 mm

Custom segment arrangements available at no extra cost. Extended or reduced set lengths available on request.

42CrMo Chromium-Molybdenum Steel — BCC Crystal Unit Cell42CrMo — Chromium-Molybdenum SteelBCC CRYSTAL UNIT CELL · MICROSTRUCTURE REFERENCE · DIN 42CrMo4α-IRON BCC UNIT CELLBody-Centered Cubic · a ≈ 2.87 Å · Cr and Mo substitute Fe at lattice nodesMoFeFeFeFeCFeCrFeFeSubstitutional CrSubstitutional MoInterstitial Ca ≈ 2.87 Å (lattice parameter)ALLOYING ELEMENTSFeIron (Fe) — MatrixBalance ≈97.3% · BCC host lattice · α-phaseCrChromium (Cr)0.90–1.20% · Hardenability & wear resistanceMoMolybdenum (Mo)0.15–0.25% · Toughness & high-temp strengthCCarbon (C)0.38–0.45% · Interstitial · Hardness controlMnManganese (Mn)0.60–0.90% · Deoxidizer & machinabilitySiSilicon (Si)0.17–0.37% · Deoxidizer & tensile strengthKEY PROPERTIES (heat-treated)Tensile Strength (Rm)≥1000 MPaYield Strength (Rp0.2)≥850 MPaHardness (quenched)54–58 HRCDensity7.85 g/cm³Crystal structureα-Fe BCC · a≈2.87ÅStandardDIN 42CrMo4 / GB 42CrMoApplicationPress brake tooling & diesCOMPOSITION (wt%) — minor elements at ×12 visual scaleFe 97.3%Cr 0.90–1.20%Mn 0.60–0.90%C 0.42%Si 0.27%Mo 0.2%α-Fe BCC lattice · Cr/Mo as representative substitutional atoms · C as representative interstitial · Ref: DIN EN ISO 683-2, ASM Handbook Vol.1
Material Reference — 42CrMo Alloy Steel (DIN 42CrMo4 / GB 42CrMo / ASTM 4140 equivalent) Alpha-iron (α-Fe) body-centered cubic (BCC) crystal unit cell. Representative substitutional Chromium (Cr, blue) and Molybdenum (Mo, green) atoms shown at lattice nodes; interstitial Carbon (C, charcoal) shown at octahedral site. Composition bar (bottom) shows all alloying elements — minor elements at ×12 visual scale for readability. All TFICO press brake tooling is manufactured from 42CrMo alloy steel, quench-and-temper heat-treated to achieve 54–58 HRC surface hardness and minimum tensile strength of 1,000 MPa. Lattice parameter a ≈ 2.87 Å. Standard: DIN EN ISO 683-2 · ASM Handbook Vol. 1 · GB/T 11251.
