EU3214 SASH Straight Punch 86° – 100mm Working Height | Silver Class
BPS_100_26_86
New product

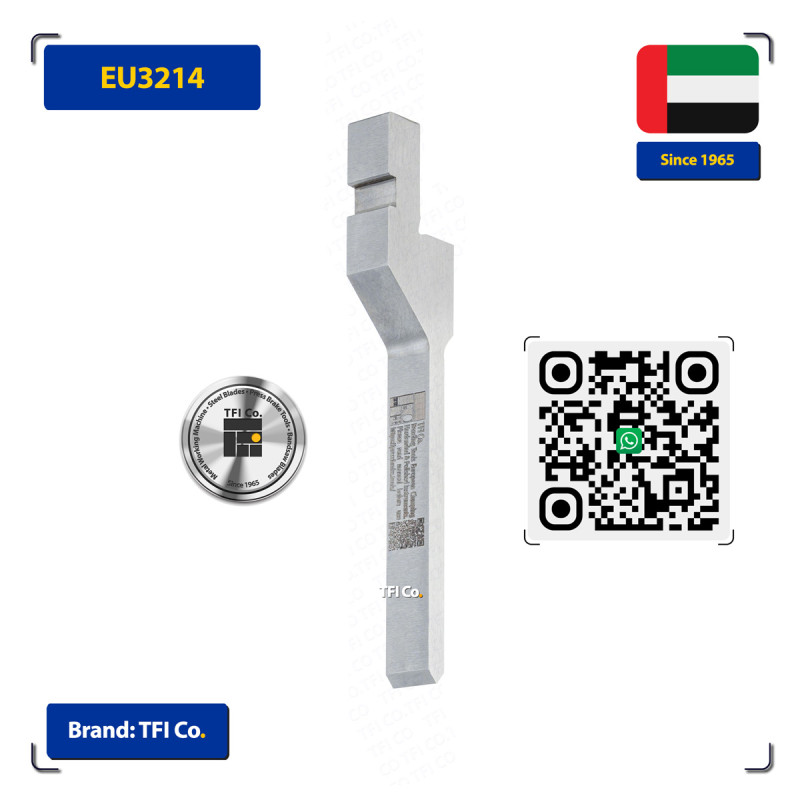

EU3214 SASH punch — 100mm working height, 26mm body, 86°. Inward-angled tip provides access to both sides of a bend in a single stroke. Silver Class. For window frames, door jambs, and architectural profiles across the UAE and GCC.
More info
Technical Specifications
| Punch Height (H) | 100.00 mm |
| Body Thickness (B) | 26.00 mm |
| Bending Angle | 86.00° |
| Material Grade | 42CrMo4 |
| Tolerance Class | DIN 7168 Fine |
| Standard Set Length | 835 mm |
| Segment Composition | 5×150mm + 2×42.5mm |
| Product Grade | Silver Class |
| EU Drawing Reference | EU3214 |
Clamp System Compatibility
- AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
- AMADA™ Direct-Mount — AMADA™ native clamp systems
Parameters Confirmed Upon Order
The following parameters are customer-defined. TFI Co. will confirm these via email upon receipt of order:
- Tip Radius (R): Standard options: 0.6 mm / 0.8 mm / 1 mm. Custom radius available on request.
- Segment Composition: Standard configuration: 5×150mm + 2×42.5mm. Custom segment arrangement available at no extra cost.
TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.
A compact SASH punch with a 100 mm working height and narrow 26 mm body, shaped with the characteristic inward-angled tip that gives operators access to both sides of a bend. Designed for window frame profiles, door jambs, and architectural sashes where a standard straight punch would obstruct the workpiece. The 86° bending angle produces a crisp, sharp profile on both faces of the formed part — ideal for framing components and structural sections that demand angles on both sides of the bend in a single stroke.
TFI Co. provides precision press brake tooling for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for multi-stage bending and box-forming applications. Precision-hardened to 52 HRC, all body thickness dimensions conform to DIN 7168 tolerance standards.
Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres. All punch segment sets include one left ear and one right ear piece.
All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.
