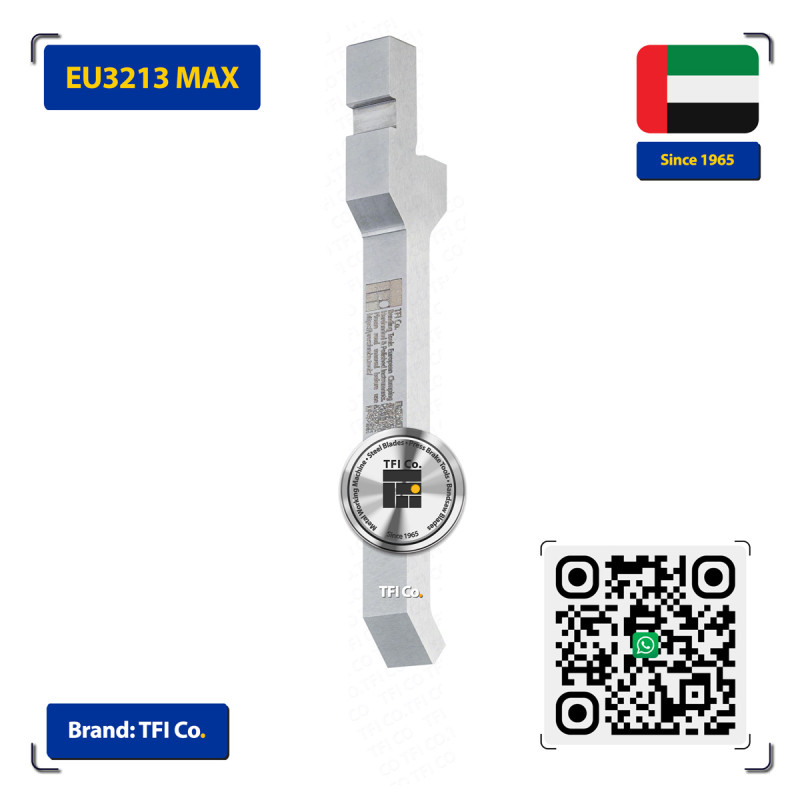

EU3213-MAX Straight Punch 86° – 150mm Working Height | Silver Class
BPS_150_26_86
New product
EU3213-MAX — 150mm working height straight press brake punch, 26mm body, 86° bending angle. Silver Class. The go-to tall straight punch for mixed-depth enclosure production across the UAE and GCC.
41 Items
Pre-order — ships from Sharjah within 5–7 working days
More info
TFI Co. supplies the EU3213 Silver Class straight bending punch upper tool for press brake machines, serving the metalworking and sheet metal fabrication industry across the UAE, Saudi Arabia, Oman, and Qatar. The EU3213 is a straight upper punch engineered for standard press brake forming operations, precision-manufactured and available for immediate dispatch from TFI Co. logistics centres.
This tool carries a working height of 150 mm and a body thickness of 26 mm, with a standard 86° bending angle suited to general sheet metal work and production-line setups.
Manufactured from 42CrMo (Chromium-Molybdenum Steel) — a high-strength alloy selected for press brake tooling for its exceptional toughness, fatigue resistance, and consistent dimensional stability under cyclic bending loads, and precision-hardened to 55–62 HRC at the tip contact zone. All body thickness dimensions conform to DIN 7168 Fine tolerance standards, ensuring consistent clamping fit and tool interchange across compatible press brake systems.
Technical Specifications
| Punch Height (H) | 150.00 mm |
| Body Thickness (B) | 26.00 mm |
| Bending Angle | 86.00° |
| Material Grade | 42CrMo4 |
| Tip Hardness | 55–62 HRC |
| Body Hardness | 45–50 HRC |
| Tolerance Class | DIN 7168 Fine |
| Standard Set Length | 835 mm |
| Segment Composition | 1×100mm ear + 3×800mm + 2×100mm + 2×200mm + 1×100mm ear |
| Product Grade | Silver Class |
| EU Drawing Reference | EU3213 |
Clamp System Compatibility
- AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
- AMADA™ Direct-Mount — AMADA™ native clamp systems
Parameters Confirmed Upon Order
The following parameters are customer-defined. TFI Co. will confirm these via email upon receipt of order:
- Tip Radius (R): Standard options: 0.6 mm / 0.8 mm / 1 mm. Custom radius available on request.
- Segment Composition: Standard configuration: 1×100mm ear + 3×800mm + 2×100mm + 2×200mm + 1×100mm ear. Custom segment arrangement available at no extra cost.
Delivery Coverage
TFI Co. ships this product across the GCC region. Delivery is confirmed upon order to the following countries and territories:
- UAE — delivered across all 7 emirates: Ajman, Abu Dhabi, Dubai, Fujairah, Ras Al Khaimah, Sharjah, and Umm Al Quwain
- Saudi Arabia — delivered across all 13 regions: Riyadh, Makkah, Al Madinah, Al Qasim, Eastern Province, Asir, Tabuk, Hail, Northern Borders, Jazan, Najran, Al Bahah, and Al Jawf
- Qatar — delivered across all 7 municipalities: Ad Dawhah (Doha), Al Khor, Ash Shamal, Ar Rayyan, Umm Salal, Al Wakrah, and Az Za'ayin
- Oman — delivered across all 11 governorates: Al Batinah North, Al Batinah South, Al Buraymi, Ad Dakhiliyah, Muscat, Musandam, Al Sharqiyah North, Al Sharqiyah South, Al Wusta, Az Zahirah, and Dhofar
- Kuwait — delivered across all 6 governorates: Al Ahmadi, Al Farwaniyah, Hawalli, Al Jahra, Al Asimah (Kuwait City), and Mubarak Al-Kabeer
- Bahrain — delivered across all 4 governorates: Al Asimah (Manama), Al Janubiyah, Al Muharraq, and Ash Shamaliyah
TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.
TFI Co. provides Silver Class straight bending punch upper tools for press brake machines, serving the metal working and sheet metal fabrication industries. These tools are manufactured from high-quality alloy steel, precision-hardened and ground, and well-tested for multi-U-channel bending, box forming, and profile production on press brake machines. Available across the United Arab Emirates (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar.
The dimensions of this tool are 150 mm × 26 mm (working height × body thickness), with a bending angle of 86°.
Material & Steel Grade
Special grade steels — including BÖHLER tool steel™, Type 4 Molybdenum Steel, T10, T8, 42CrMo, and Cr12MoV — are the industry-standard materials for press brake punch and die tooling. The punch and die assembly absorbs the majority of the forming force produced by the press brake, making high-strength hardened steel essential for sustained production performance and dimensional consistency.
For press brake tooling, Chromium-Molybdenum Steel (Chromoly) is widely regarded as the ideal base alloy — combining exceptional tensile strength, corrosion resistance, and a long service life capable of handling the full force range of industrial press brake applications. Tungsten carbide tooling is also an excellent choice where surface hardness requirements are extreme.
Factories & Delivery
TFI Co. factories are positioned across key manufacturing regions to ensure the shortest possible lead times for customers and traders throughout the Middle East and beyond. Our management team, using the latest logistics technology, allocates each order to the optimal TFI Co. factory to ensure a seamless experience across logistics, fulfilment, and payment.
Dispatch scheduling is determined based on:
- Time and date of order placement
- Order quantity and total volume
- Delivery destination and transport routing to the customer site
Segment Composition
The standard segment set for this tool comprises the following pieces:
- 1 × 100 mm ear piece (100 mm sub-total)
- 3 × 800 mm main segment (2400 mm sub-total)
- 2 × 100 mm main segment (200 mm sub-total)
- 2 × 200 mm main segment (400 mm sub-total)
- 1 × 100 mm ear piece (100 mm sub-total)
Total set length: 3200 mm. Each punch segment set is supplied as a complete assembly ready for press brake installation.
Dimensional Tolerances
All body thickness dimensions for this tool conform to DIN 7168 Fine tolerance standards (DIN — Deutsches Institut für Normung, the German Institute for Standardization). This tolerance framework guarantees consistent clamping fit and reliable tool interchange across compatible press brake clamping systems and adapters.
Maximum Bending Force & Safety
All TFI Co. press brake tools carry a maximum rated bending force, which defines the safe operating limit for both staff protection and long-term tool performance. TFI Co. strongly advises all operators to remain within the stated capacity of any tool at all times.
For Further Information
The exact rated maximum bending force and safe tonnage capacity applicable to this specific tool model can be confirmed by contacting TFI Co. prior to finalising your order.
Extended working height version of the EU3213 — 150 mm for bending deeper boxes and larger enclosures without a tool change. Same 26 mm body and sharp 86° angle. This is the standard choice when forming depth exceeds what a 130 mm punch can comfortably reach, and the preferred tall straight punch for production lines running mixed-depth enclosure work in a single setup.
TFI Co. provides precision press brake tooling for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for multi-stage bending and box-forming applications. Precision-hardened to 52 HRC, all body thickness dimensions conform to DIN 7168 tolerance standards.
Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres. All segment sets include one left ear and one right ear piece for press brake punch segments.
All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.
Set Composition
Total: 3200 mm • 9 pieces
| Ear pieces | 1 × 100 mm (100mm sub-total) |
| Main segments | 3 × 800 mm (2400mm sub-total) |
| Main segments | 2 × 100 mm (200mm sub-total) |
| Main segments | 2 × 200 mm (400mm sub-total) |
| Ear pieces | 1 × 100 mm (100mm sub-total) |
| Total Set Length | 3200 mm |
Custom segment arrangements available at no extra cost. Extended or reduced set lengths available on request.
