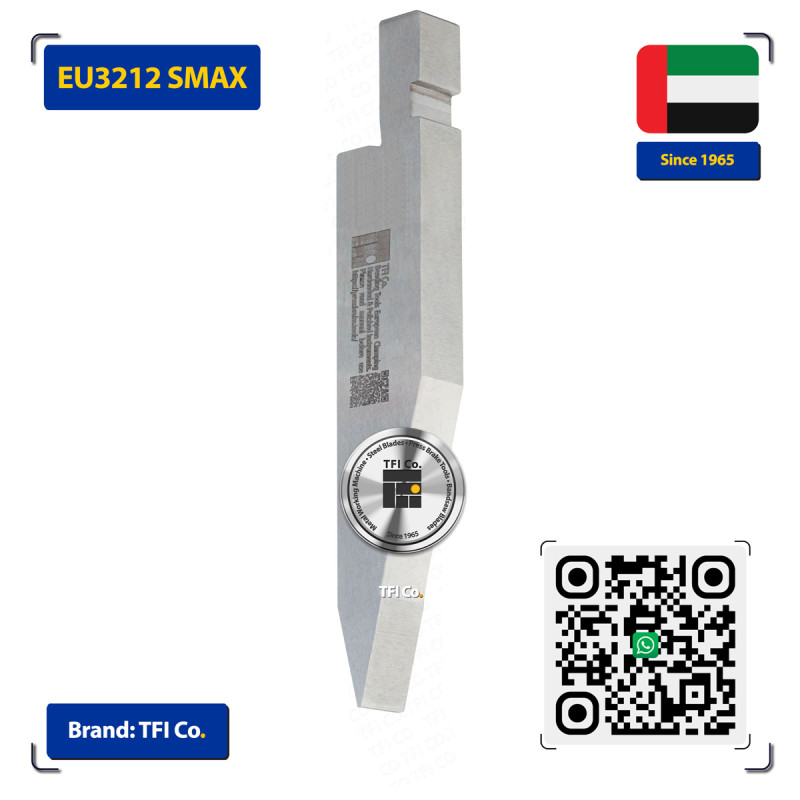

EU3212-S-MAX Joggle Punch 30° S-Body – 150mm Working Height | Silver Class
BPS_150_26_30_S
New product
EU3212-S-MAX — 150mm working height S-body joggle punch, 26mm body, 30° angle. Silver Class. Stepped offset flange forming at depth for complex architectural and enclosure assemblies across the UAE and GCC.
More info
Technical Specifications
| Punch Height (H) | 150.00 mm |
| Body Thickness (B) | 26.00 mm |
| Bending Angle | 30.00° |
| Material Grade | 42CrMo4 |
| Tolerance Class | DIN 7168 Fine |
| Standard Set Length | 835 mm |
| Segment Composition | 5×150mm + 2×42.5mm |
| Product Grade | Silver Class |
| EU Drawing Reference | EU3212 |
Clamp System Compatibility
- AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
- AMADA™ Direct-Mount — AMADA™ native clamp systems
Parameters Confirmed Upon Order
The following parameters are customer-defined. TFI Co. will confirm these via email upon receipt of order:
- Tip Radius (R): Standard options: 0.6 mm / 0.8 mm / 1 mm. Custom radius available on request.
- Segment Composition: Standard configuration: 5×150mm + 2×42.5mm. Custom segment arrangement available at no extra cost.
TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.
The tall S-body offset punch at 150 mm working height — for deeper box assemblies with stepped profiles that require the offset Z-bend geometry at greater forming depth. Same acute 30° angle in the S-body that creates the flanged step in one stroke, with the added height providing clearance for workpieces with pre-formed legs or side walls. For complex architectural and enclosure parts where both acute angle and offset geometry are required in a single tool.
TFI Co. provides precision press brake tooling for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for multi-stage bending and box-forming applications. Precision-hardened to 52 HRC, all body thickness dimensions conform to DIN 7168 tolerance standards.
Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres. All punch segment sets include one left ear and one right ear piece.
All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.
