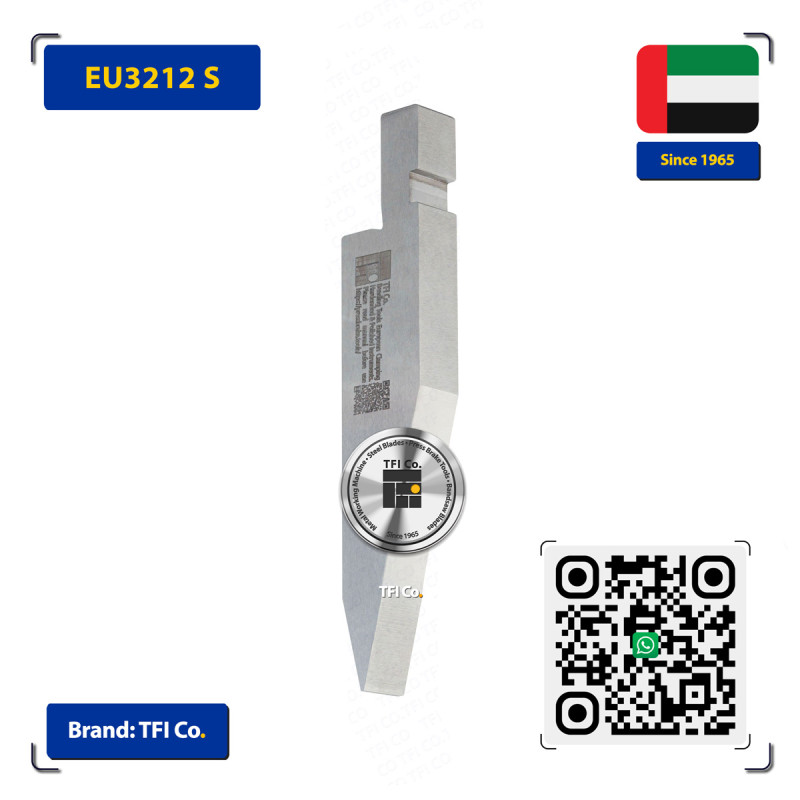

EU3212-S Joggle Punch 30° S-Body – 130mm Working Height | Silver Class

BPS_130_26_30_S

New product

EU3212-S — 130mm working height S-body joggle punch, 26mm body, 30° angle. Silver Class. Produces a Z-bend or stepped offset flange in a single stroke — no repositioning needed. For window channels and stepped frames across the UAE and GCC.

More details

More info

Technical Specifications

Punch Height (H)130.00 mm
Body Thickness (B)26.00 mm
Bending Angle30.00°
Material Grade42CrMo4
Tolerance ClassDIN 7168 Fine
Standard Set Length835 mm
Segment Composition5×150mm + 2×42.5mm
Product GradeSilver Class
EU Drawing ReferenceEU3212

Clamp System Compatibility

  • AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
  • AMADA™ Direct-Mount — AMADA™ native clamp systems

Parameters Confirmed Upon Order

The following parameters are customer-defined. TFI Co. will confirm these via email upon receipt of order:

  • Tip Radius (R): Standard options: 0.6 mm / 0.8 mm / 1 mm. Custom radius available on request.
  • Segment Composition: Standard configuration: 5×150mm + 2×42.5mm. Custom segment arrangement available at no extra cost.

TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.

A 30° acute punch in the offset S-body profile — 130 mm working height. The S-profile is designed to produce a Z-bend or offset step in a single press brake stroke: two parallel bends at different heights, forming a stepped flange or joggle without repositioning the workpiece. Particularly effective for window channel sections, stepped frames, offset flanges, and any profile where a conventional straight punch cannot access the geometry because the required bends lie at different heights.

TFI Co. provides precision press brake tooling for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for multi-stage bending and box-forming applications. Precision-hardened to 52 HRC, all body thickness dimensions conform to DIN 7168 tolerance standards.

Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres. All punch segment sets include one left ear and one right ear piece.

All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.
