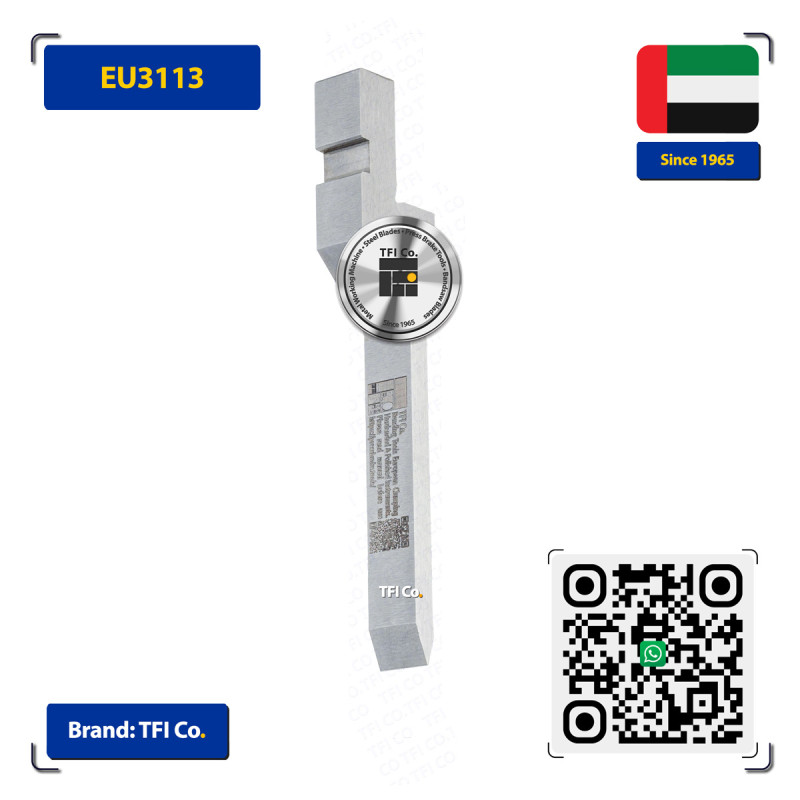

EU3113 Straight Punch 30° Narrow Tip 6mm – 130mm Working Height | Silver Class
BPS_130_26_30_T6
New product
EU3113 — 130mm working height acute punch with 6mm narrow tip, 26mm body, 30° angle. Silver Class. Precision narrow-tip access for electronic enclosures and closely-spaced bends across the UAE and GCC.
More info
Technical Specifications
| Punch Height (H) | 130.00 mm |
| Body Thickness (B) | 26.00 mm |
| Bending Angle | 30.00° |
| Material Grade | 42CrMo4 |
| Tolerance Class | DIN 7168 Fine |
| Standard Set Length | 835 mm |
| Segment Composition | 5×150mm + 2×42.5mm |
| Product Grade | Silver Class |
| EU Drawing Reference | EU3113 |
Clamp System Compatibility
- AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
- AMADA™ Direct-Mount — AMADA™ native clamp systems
Parameters Confirmed Upon Order
The following parameters are customer-defined. TFI Co. will confirm these via email upon receipt of order:
- Tip Radius (R): Standard options: 0.6 mm / 0.8 mm / 1 mm. Custom radius available on request.
- Segment Composition: Standard configuration: 5×150mm + 2×42.5mm. Custom segment arrangement available at no extra cost.
TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.
A 30° acute punch with a precision-ground 6 mm narrow tip — 130 mm working height, 26 mm body. The 6 mm tip thickness enables access to tight geometries and narrow flanges that a standard-tip punch cannot reach: electronic enclosures, precision brackets, and components where bends are closely spaced. For sharp-angle bending where access to confined spaces is as important as the bend angle. Note: the narrow tip is optimised for precision forming on light-to-medium gauge material — high-tonnage applications should use the EU3210 series with the 12 mm reinforced tip.
TFI Co. provides precision press brake tooling for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for multi-stage bending and box-forming applications. Precision-hardened to 52 HRC, all body thickness dimensions conform to DIN 7168 tolerance standards.
Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres. All punch segment sets include one left ear and one right ear piece.
All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.
