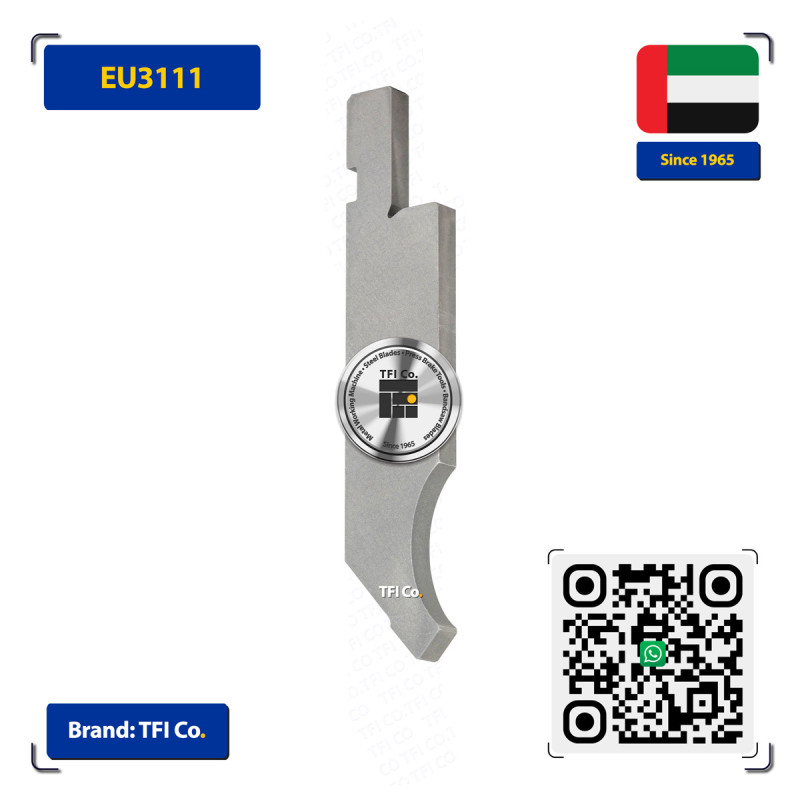

EU3111 Straight Punch 86° – 130mm Working Height | Silver Class

Reference: BPS_130_26_86_111

Condition: New product

EU3111 — 130mm working height 3100 series straight punch, 26mm body, 86° angle. Silver Class. Precision sharp-angle bending for brackets, panels, and structural profiles — fully interchangeable within the 3100 series across the UAE and GCC.

More details

More info

Technical Specifications

Punch Height (H)	130.00 mm
Body Thickness (B)	26.00 mm
Bending Angle	86.00°
Material Grade	42CrMo4
Tolerance Class	DIN 7168 Fine
Standard Set Length	835 mm
Segment Composition	5×150mm + 2×42.5mm
Product Grade	Silver Class
EU Drawing Reference	EU3111

Clamp System Compatibility

AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
AMADA™ Direct-Mount — AMADA™ native clamp systems

Parameters Confirmed Upon Order

The following parameters are customer-defined. TFI Co. will confirm these via email upon receipt of order:

Tip Radius (R): Standard options: 0.6 mm / 0.8 mm / 1 mm. Custom radius available on request.
Segment Composition: Standard configuration: 5×150mm + 2×42.5mm. Custom segment arrangement available at no extra cost.

TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.

A standard 86° straight punch — 130 mm working height, 26 mm body — from the 3100 series family. Precision-machined for sharp, consistent bending across brackets, panels, and structural profiles in daily production. The 3100 series profile is specified where straightforward 86° forming at moderate box depth is the requirement, and where tool interchangeability across a mixed 3100 series set is an advantage in flexible manufacturing environments.

TFI Co. provides precision press brake tooling for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for multi-stage bending and box-forming applications. Precision-hardened to 52 HRC, all body thickness dimensions conform to DIN 7168 tolerance standards.

Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres. All punch segment sets include one left ear and one right ear piece.

All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.
