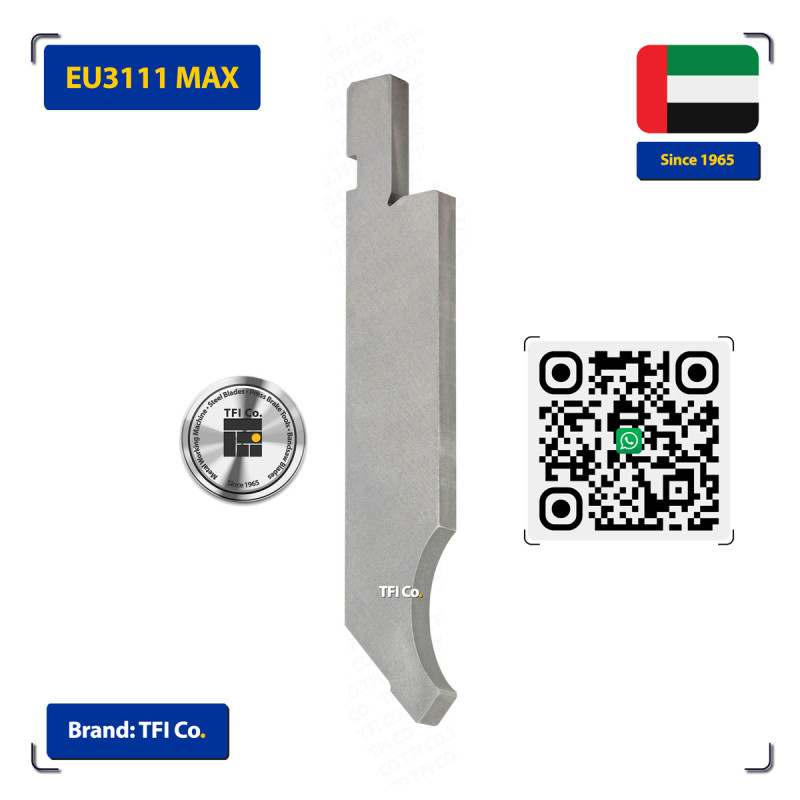

EU3111-MAX Straight Punch 86° – 150mm Working Height | Silver Class
BPS_150_26_86_111
New product
EU3111-MAX — 150mm working height 3100 series straight punch, 26mm body, 86° angle. Silver Class. Extended height for deeper box bending — interchangeable within 3100 series for mixed-height production setups across the UAE and GCC.
More info
Technical Specifications
| Punch Height (H) | 150.00 mm |
| Body Thickness (B) | 26.00 mm |
| Bending Angle | 86.00° |
| Material Grade | 42CrMo4 |
| Tolerance Class | DIN 7168 Fine |
| Standard Set Length | 835 mm |
| Segment Composition | 5×150mm + 2×42.5mm |
| Product Grade | Silver Class |
| EU Drawing Reference | EU3111 |
Clamp System Compatibility
- AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
- AMADA™ Direct-Mount — AMADA™ native clamp systems
Parameters Confirmed Upon Order
The following parameters are customer-defined. TFI Co. will confirm these via email upon receipt of order:
- Tip Radius (R): Standard options: 0.6 mm / 0.8 mm / 1 mm. Custom radius available on request.
- Segment Composition: Standard configuration: 5×150mm + 2×42.5mm. Custom segment arrangement available at no extra cost.
TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.
Extended 150 mm working height version of the EU3111 straight punch. Same 26 mm body and 86° angle, added height for deeper box bending and taller enclosure profiles. Interchangeable within the 3100 series, allowing mixed-height sets to be assembled on the press brake for production runs covering multiple part depths in a single machine setup.
TFI Co. provides precision press brake tooling for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for multi-stage bending and box-forming applications. Precision-hardened to 52 HRC, all body thickness dimensions conform to DIN 7168 tolerance standards.
Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres. All punch segment sets include one left ear and one right ear piece.
All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.
