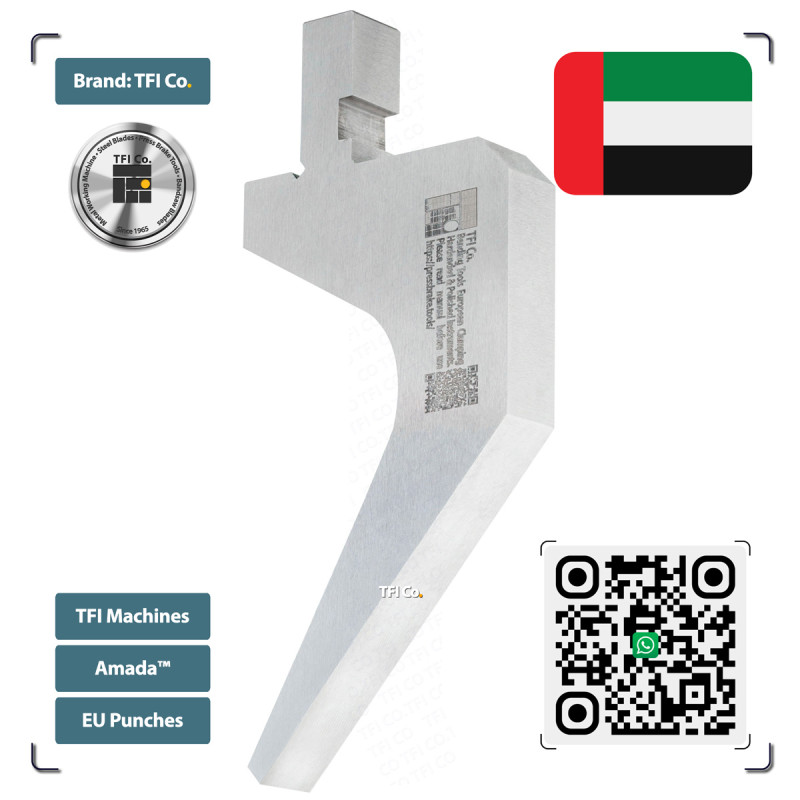

EU4415 Gooseneck Punch 86° – 150mm Working Height B65mm | Silver Class
BPG_150_65_86
New product
EU4415 — 150mm working height gooseneck press brake punch, 65mm deep-relief body, 86° angle. Silver Class. The widest-body gooseneck in the TFI range — ideal for large return flanges and wide-format box bending across the UAE and GCC.
2 Items
Pre Order
More info
Technical Specifications
| Punch Height (H) | 150.00 mm |
| Body Thickness (B) | 65.00 mm |
| Bending Angle | 86.00° |
| Material Grade | 42CrMo4 |
| Tip Hardness | 45–50 HRC |
| Body Hardness | 40–45 HRC |
| Tolerance Class | DIN 7168 Medium |
| Standard Set Length | 835 mm |
| Segment Composition | 1×100mm ear + 3×800mm + 2×200mm + 2×200mm + 1×100mm ear |
| Product Grade | Silver Class |
| EU Drawing Reference | EU4415 |
Clamp System Compatibility
- AFH / Euro Style — AMADA™, Bystronic™, Durma™, Ermaksan™, and most Euro-clamp CNC press brakes
- AMADA™ Direct-Mount — AMADA™ native clamp systems
Parameters Confirmed Upon Order
The following parameters are customer-defined. TFI Co. will confirm these via email upon receipt of order:
- Tip Radius (R): Standard options: 0.6 mm / 0.8 mm / 1 mm. Custom radius available on request.
- Segment Composition: Standard configuration: 1×100mm ear + 3×800mm + 2×200mm + 2×200mm + 1×100mm ear. Custom segment arrangement available at no extra cost.
Delivery Coverage
TFI Co. ships this product across the GCC region. Delivery is confirmed upon order to the following countries and territories:
- UAE — delivered across all 7 emirates: Ajman, Abu Dhabi, Dubai, Fujairah, Ras Al Khaimah, Sharjah, and Umm Al Quwain
- Saudi Arabia — delivered across all 13 regions: Riyadh, Makkah, Al Madinah, Al Qasim, Eastern Province, Asir, Tabuk, Hail, Northern Borders, Jazan, Najran, Al Bahah, and Al Jawf
- Qatar — delivered across all 7 municipalities: Ad Dawhah (Doha), Al Khor, Ash Shamal, Ar Rayyan, Umm Salal, Al Wakrah, and Az Za'ayin
- Oman — delivered across all 11 governorates: Al Batinah North, Al Batinah South, Al Buraymi, Ad Dakhiliyah, Muscat, Musandam, Al Sharqiyah North, Al Sharqiyah South, Al Wusta, Az Zahirah, and Dhofar
- Kuwait — delivered across all 6 governorates: Al Ahmadi, Al Farwaniyah, Hawalli, Al Jahra, Al Asimah (Kuwait City), and Mubarak Al-Kabeer
- Bahrain — delivered across all 4 governorates: Al Asimah (Manama), Al Janubiyah, Al Muharraq, and Ash Shamaliyah
TFI Co. provides these technical specifications as a reference only. TFI Co. accepts no liability if a third-party manufacturer applies these specifications and is unable to achieve equivalent product quality. The manufacturing outcomes of any external production facility are entirely beyond TFI Co.’s control and responsibility.
The widest-body gooseneck punch in the TFI range — 150 mm working height with a 65 mm deep-relief throat that accommodates larger return flanges than the EU4414 series. The wider neck section provides additional torsional stiffness, allowing more consistent force distribution on longer parts and reducing tool deflection on wide-format bends. Specified for deep channel profiles, large-format box bending, and industrial enclosures with substantial return flanges where both the gooseneck geometry access and body rigidity under load are required.
TFI Co. provides precision press brake tooling for the metalworking industry, manufactured from 42CrMo (Chromium-Molybdenum Steel) — hard, precision-ground, and well-tested for multi-stage bending and box-forming applications. Precision-hardened to 52 HRC, all body thickness dimensions conform to DIN 7168 tolerance standards.
Available for immediate delivery across the UAE (Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah), the Kingdom of Saudi Arabia, Oman, and Qatar from TFI Co. logistics centres. All segment sets include one left ear and one right ear piece for press brake punch segments.
All tools come with a maximum tonnage capacity. TFI Co. strongly advises all customers to stay within the rated capacity for staff safety, and to only apply the stated maximum force — not more.
Set Composition
Total: 3400 mm • 9 pieces
| Ear pieces | 1 × 100 mm (100mm sub-total) |
| Main segments | 3 × 800 mm (2400mm sub-total) |
| Main segments | 2 × 200 mm (400mm sub-total) |
| Main segments | 2 × 200 mm (400mm sub-total) |
| Ear pieces | 1 × 100 mm (100mm sub-total) |
| Total Set Length | 3400 mm |
Custom segment arrangements available at no extra cost. Extended or reduced set lengths available on request.
